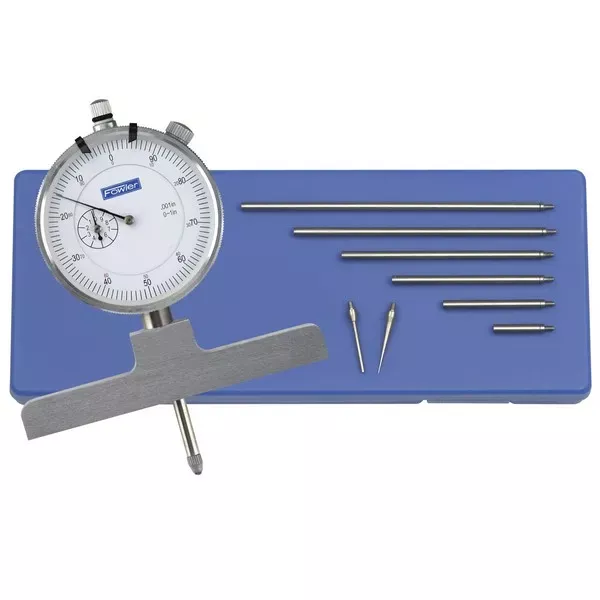

Fowler 52-125-006-1 0-22″ X-Depth Dial Depth Gage

Fowler’s 0 – 22″ Dial Depth Gages comes with six interchangeable rods with a 0 – 22″ capacity, carbide contact point and 2 extra points for small applications. Provides rapid measurement of hole depths.

Features:

• Measurements automatically registered directly on dial face in 0.001″ graduations
• The dial indicator can be easily adjusted for zero setting
• Graduation:0.001″
• 0-1″ travel indicator
• Accuracy of the dial indicator meets Federal specifications
• Rod extensions of 1″, 2″, 3″, 4″, 5″ and 6″ are included. Rods can be connected together for a full 0 – 22″ capacity.
• Includes 2 extra points for small hole applications; one 0.078″ dia. x 1″ long and one needle point x 1″ long
• Base is hardened steel, ground and microlapped for accuracy
• Standard 4 – 48 thread removable carbide ball contact point
• Rack spindle and pinions are hardened stainless steel to ensure long wear and continuing accuracy
• Includes shop hardened case
• Range: 0-22”
• Graduation:0.001”
